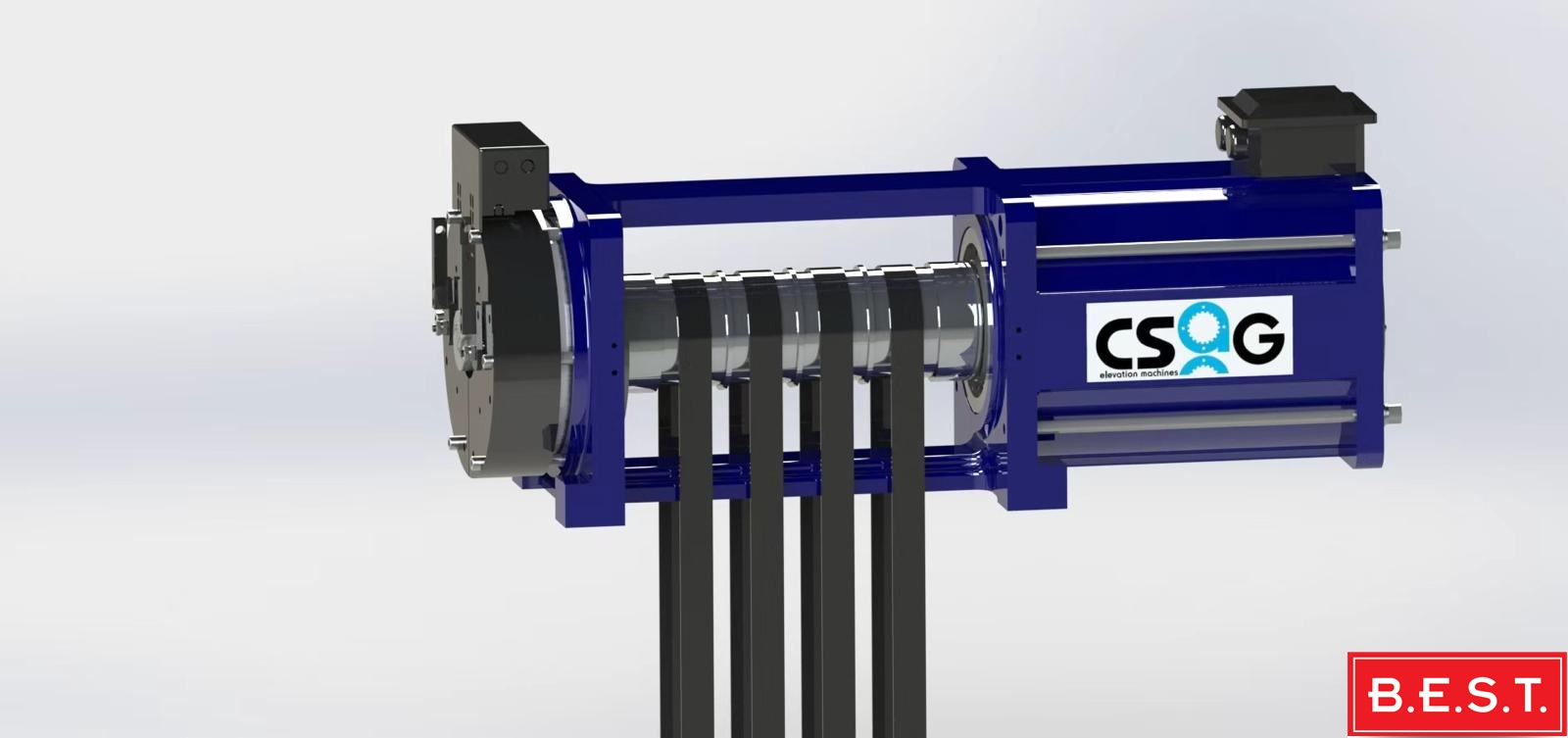

10 PULLEYS (100mm) 2:1 HANGER

CSAG-GK100-1250Kg

Sroll To Bottom
TECHNICIAL SPECIFICATIONS (CSAG-GK100-1250Kg)
Capacity1250Kg
Cabin Speed1.0m/s~1.60m/s
Pulley Diameter100 mm
Belt Diameter3x30mm
Number of Belts5
Strap Shape2 : 1
Slot Pitch5-65mm
Motor Power1m/sn=8.4kw ― 1.6m/sn=13.4kw
Motor Current1m/sn=19.2A ― 1.6m/sn=29A
Number of Poles10
Rated Speed1m/sn=382 rpm ― 1.6m/sn=611 rpm
EncoderWeton(Innovance) - SinCos
Maximum Static Load3000Kg
Cruising Distance≤ 50m ~ ≤ 80m
Rated Voltage380 V
Protection ClassIP41
Insulation StandardF
BrakeShaft Brake
Brake VoltageDC 110 V
Brake Current1.1A*2
Other SpecialWith Manual Brake Release Device
Machine Weight135
CSAG GENERAL CATALOG (.pdf)Download
