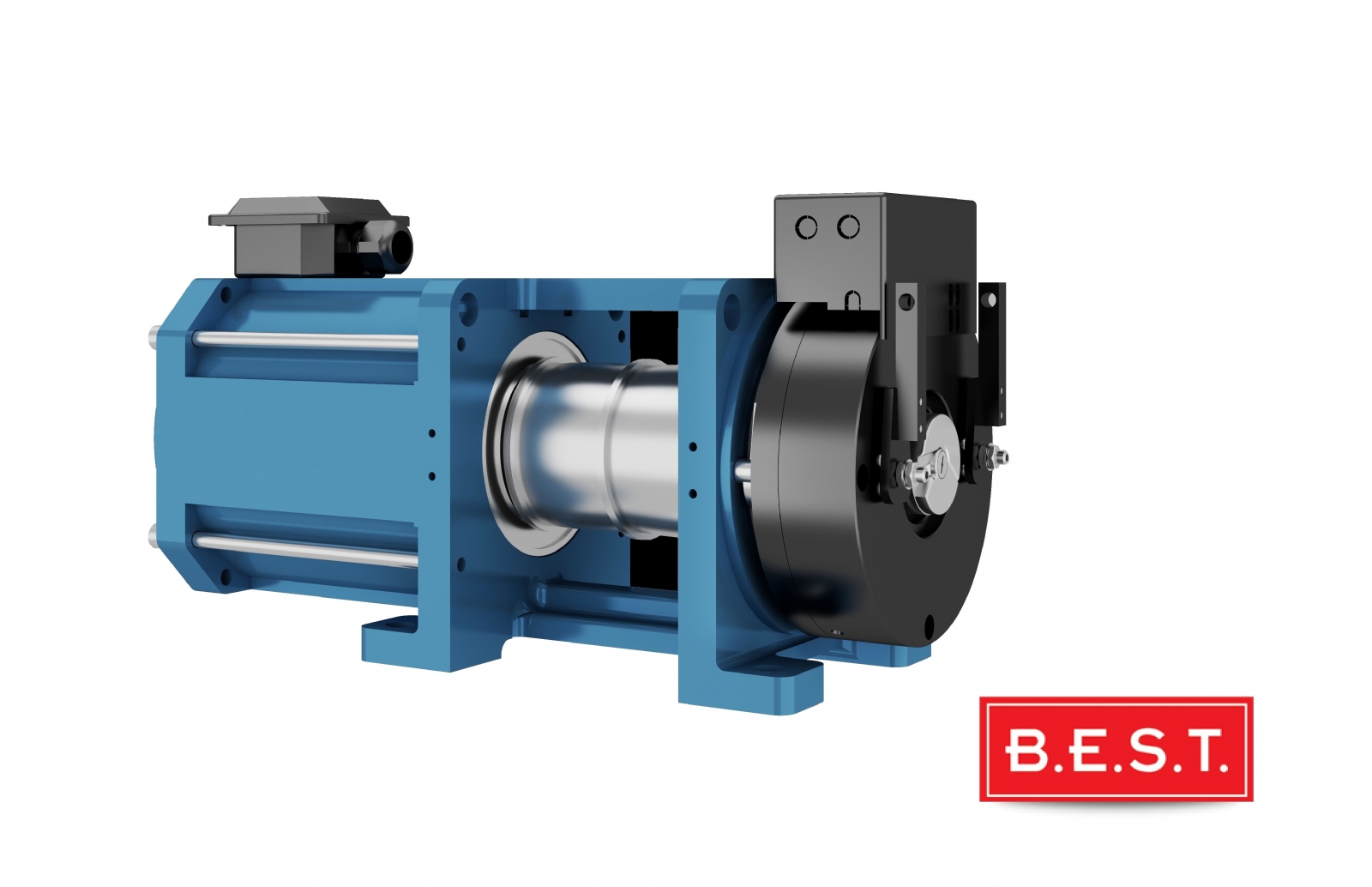

10 PULLEYS (100mm) 2:1 HANGER
CSAG-G100-65A-630Kg
| TECHNICIAL SPECIFICATIONS (CSAG-G100-65A-630Kg) | |
|---|---|
| Capacity | 630Kg |
| Cabin Speed | 0.5m/s~1.75m/s |
| Pulley Diameter | 100 mm |
| Number of Belts | 2 |
| Strap Shape | 2 : 1 |
| Slot Pitch | 2-65mm |
| Motor Power | 1m/sn=4.2kw ― 1.6m/sn=6.4kw |
| Motor Current | 1m/sn=11.4A ― 1.6m/sn=19.9A |
| Number of Poles | 16 |
| Rated Speed | 1m/sn=382 rpm ― 1.6m/sn=573 rpm |
| Encoder | Weton(Innovance) - SinCos |
| Maximum Static Load | 2500Kg |
| Cruising Distance | ≤ 50m ~ ≤ 80m |
| Rated Voltage | 380 V / 220V(Optional) |
| Protection Class | IP41 |
| Insulation Standard | F |
| Brake | Shaft Brake |
| Brake Voltage | DC 190 V |
| Brake Current | 1.0A*2 |
| Other Special | With Manual Brake Release Device |
| Machine Weight | 105Kg |
