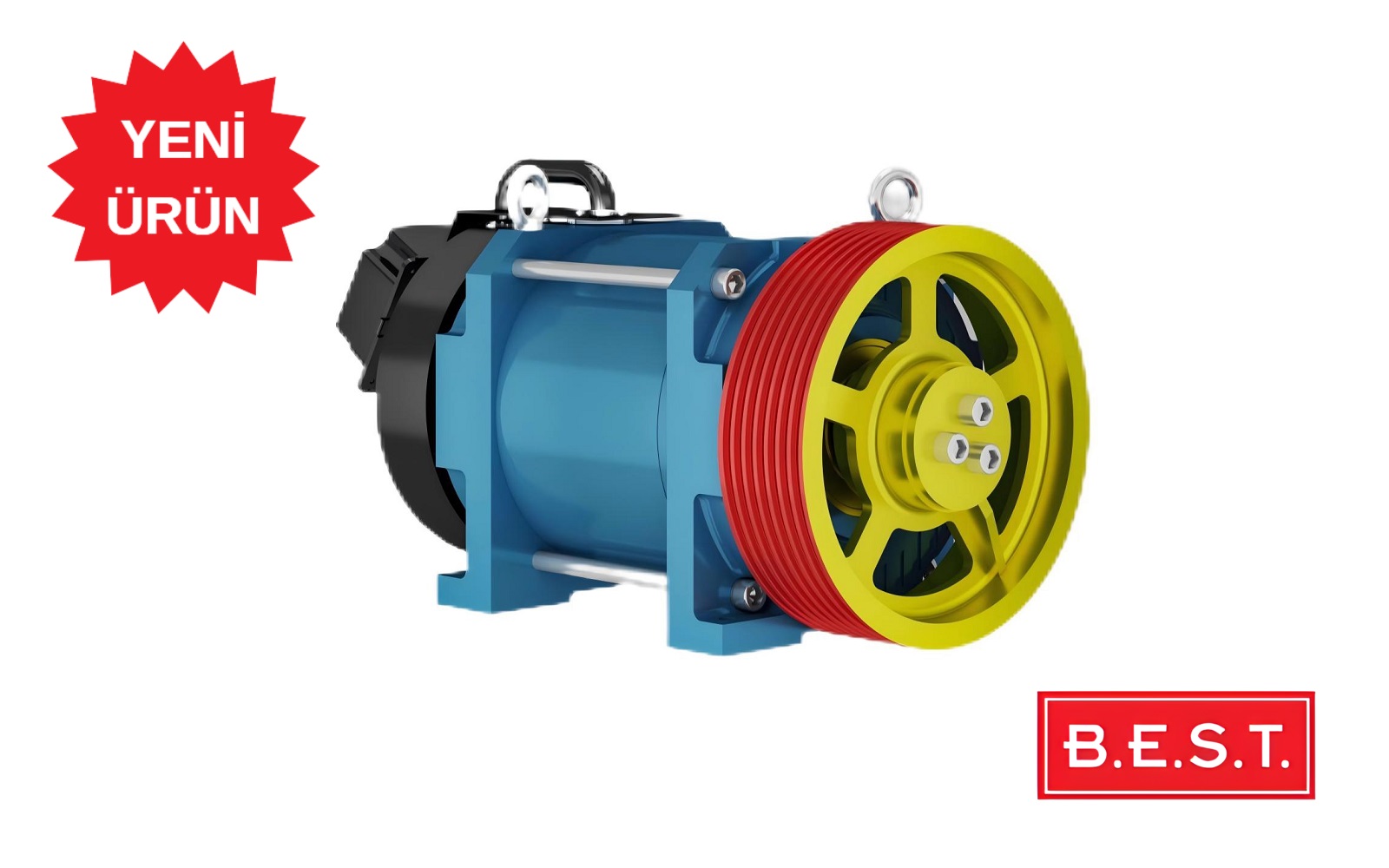

24 PULLEY (240mm) 2:1 HANGER

CSAG-E320(240) 1150Kg

Sroll To Bottom
TECHNICIAL SPECIFICATIONS (CSAG-E320(240) 1150Kg)
Capacity1150Kg
Cabin Speed1.0~1.6~2.0 m/s
Pulley Diameter240 mm
Rope Diameter6.5 mm
Number of Ropes10
Strap Shape2:1
Motor Power1m/sn=7.7kw ― 1.6m/sn=12.3kw ― 2.0m/sn=15.4kw
Motor Current1m/sn=18.9A ― 1.6m/sn=29.0A ― 2.0m/sn=33.0A
Number of Poles24
Rated Speed1m/sn=159 rpm ― 1.6m/sn=255 rpm ― 2.0m/sn=318 rpm
EncoderWeton(Innovance) - SinCos
Maximum Static Load3000Kg
Cruising Distance≤ 50m ~ ≤ 80m ~ ≤ 100m
Rated Voltage380 V
Protection ClassIP41
Insulation StandardF
Rope Trough ShapeU
BrakeShaft Brake
Brake VoltageDC 190 V
Brake Current1.0A*2
Other SpecialWith Pulley Protection Cover / With Manual Brake Release Device
Machine Weight180Kg
