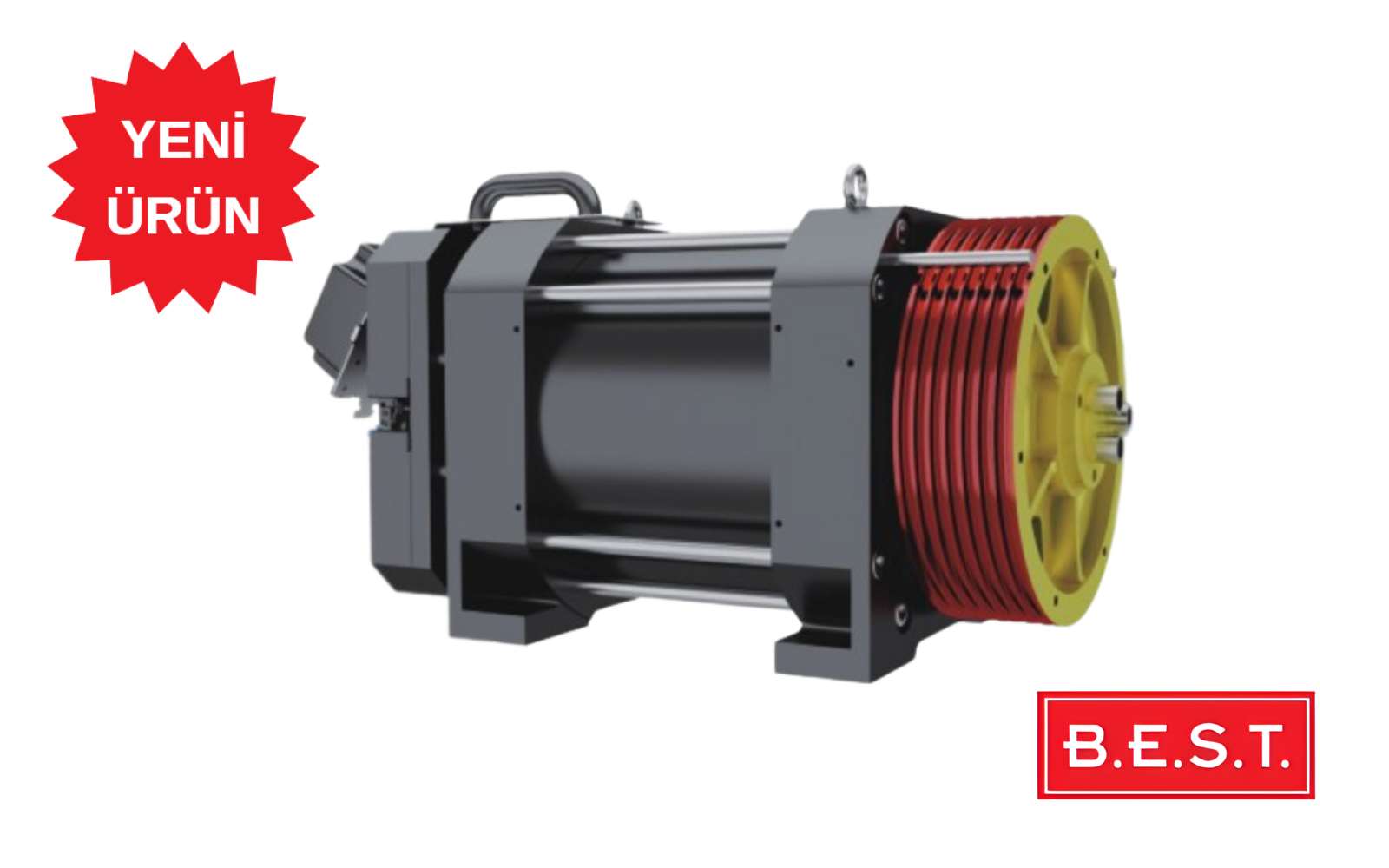

24 PULLEY (240mm) 2:1 HANGER
CSAG-D240 1250Kg
| TECHNICIAL SPECIFICATIONS (CSAG-D240 1250Kg) | |
|---|---|
| Capacity | 1250Kg |
| Cabin Speed | 1.0m/s ~ 2.5 m/s |
| Pulley Diameter | 240 mm |
| Rope Diameter | 6.5 mm |
| Number of Ropes | 10 |
| Strap Shape | 2:1 |
| Motor Power | 1m/sn=8.4kw ― 1.6m/sn=13.4kw ― 2.0m/sn=16.7kw |
| Motor Current | 1m/sn=21.0A ― 1.6m/sn=27.0A ― 2.0m/sn=37.0A |
| Number of Poles | 24 |
| Rated Speed | 1m/sn=119 rpm ― 1.6m/sn=192 rpm ― 2.0m/sn=239 rpm ― 2.5m/sn=298 rpm |
| Encoder | Hengstler - SinCos |
| Maximum Static Load | 5000Kg |
| Cruising Distance | 1m/sn= ≤ 50m ― 1.6m/sn= ≤ 80m ― 2.0m/sn= ≤ 100m ― 2.5m/sn= ≤ 120m |
| Rated Voltage | 380 V |
| Protection Class | IP41 |
| Insulation Standard | F |
| Rope Trough Shape | U |
| Brake | Şaft Fren |
| Brake Voltage | DC 190 V |
| Brake Current | 1.3A*2 |
| Other Feature | With Pulley Protection Cover / With Manual Brake Release Device |
