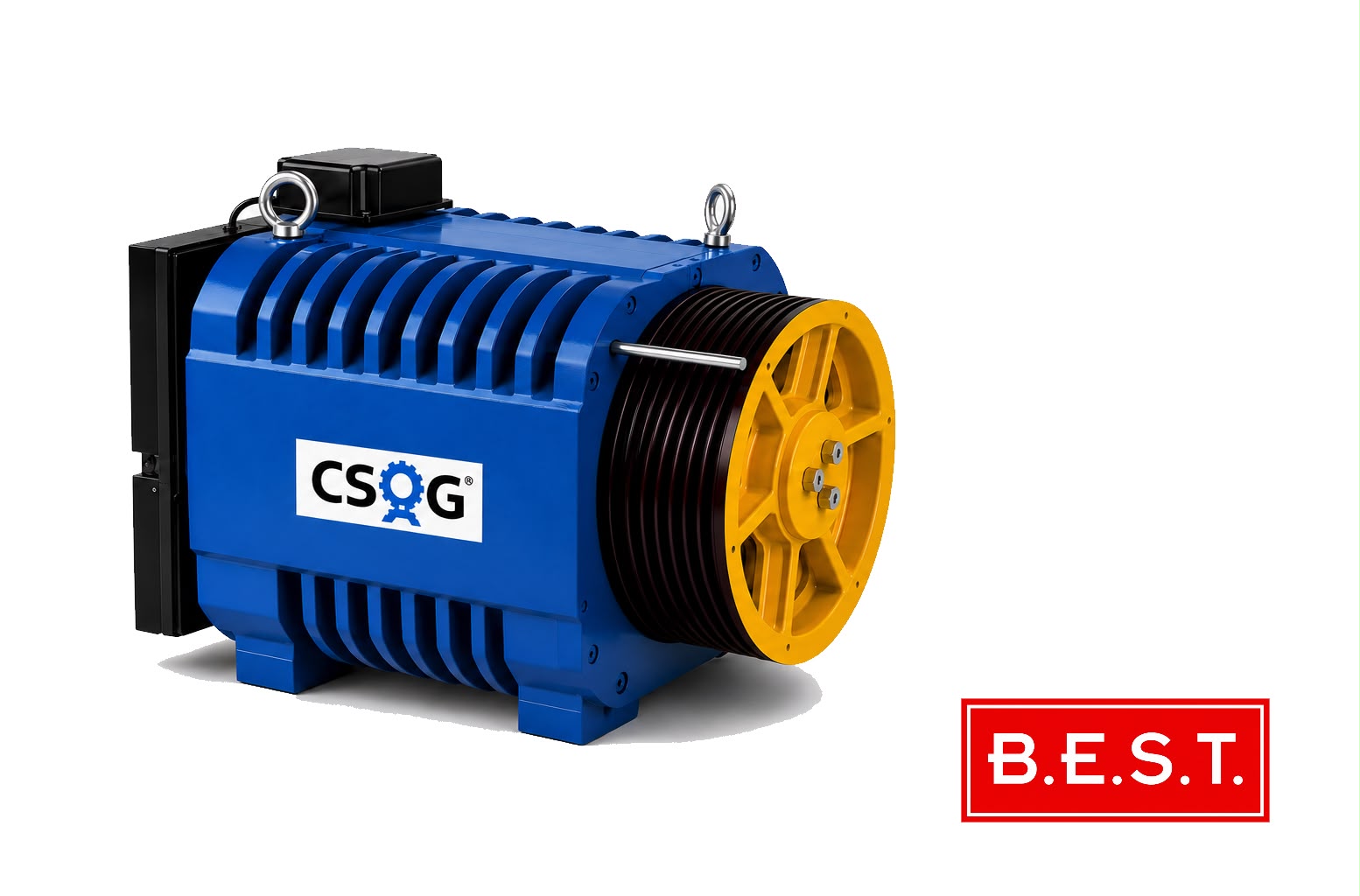

40 PULLEY (400mm) 2:1 HANGER

CSAG-W 2000Kg

Sroll To Bottom
TECHNICIAL SPECIFICATIONS (CSAG-W 2000Kg)
Capacity2000Kg
Cabin Speed1.0~1.6 m/s
Pulley Diameter400mm
Rope Diameter10mm
Number of Ropes10
Strap Shape2:1
Motor Power1m/sn=13.4kw ― 1.6m/sn=21.4kw
Motor Current1m/sn=32A ― 1.6m/sn=48.8A
Number of Poles24
Rated Speed1m/sn=95 ― 1.6m/sn=153 rpm
EncoderHengstler - SinCos
Maximum Static Load7000Kg
Cruising Distance≤ 50m ~ ≤ 80m
Rated Voltage380 V
Protection ClassIP41
Insulation StandardF
Rope Trough ShapeU
BrakeShaft Brake
Brake VoltageDC 190 V
Brake Current1.5A*2
Other SpecialWith Pulley Protection Cover / With Manual Brake Release Device
Machine Weight610Kg
CSAG W SERIES 2000kg DRAWING (400 mm) (.)Download
CSAG W SERIES 2000kg dwg (400 mm) (.)Download
CSAG-W Series 2000Kg (400 mm) STEP FILE (.)Download
CSAG ENGINE USER MANUAL TURKISH (.)Download
CSAG GENERAL CATALOG (.pdf)Download
CSAG EU CERTIFICATE OF CONFORMITY (.)Download
CSAG CE (.)Download
EAC ENGINE CERTIFICATE (.pdf)Download
